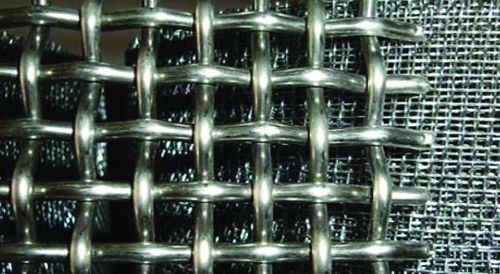

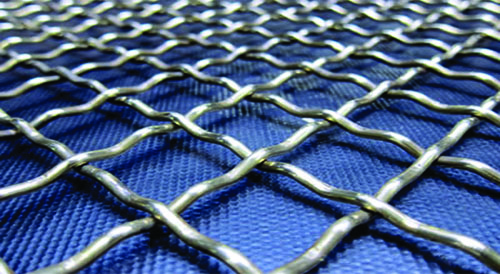

Crimped Wire Mesh
Crimped Wire Mesh is a long-lasting and heavy-duty mesh made from high-grade stainless steel, mild steel, galvanized iron, or brass wire. This mesh is manufactured using specialized crimping equipment, where the wires are set in a wave pattern. This unique structure makes the mesh strong, stable, and resilient. Kinky cable mesh is available in various wire gauges, opening sizes, and patterns, which can be selected according to your specific requirements.
Crimped mesh is used in many fields such as mining, construction, agriculture, chemical industries, food processing, and filtration. It is highly useful in conveyor belts, vibrating screens, fencing, security barriers, grills, and sieving. It is also popular for decorative purposes such as interior design, partition panels, and false ceilings. For heavy-duty applications, double-crimped and lock-crimp mesh designs are used, which provide additional strength.
The most significant features of crimped wire mesh are its strength and durability. Its rigid structure can withstand high pressure and heavy loads. The mesh is corrosion-resistant—especially the stainless steel and galvanized versions—giving it a long life even in harsh environmental conditions. Its consistent mesh pattern ensures smooth airflow and material flow. Being maintenance-free makes it a cost-effective solution for long-term usage.
If you need a mesh that is strong, versatile, and suitable for a wide range of industrial or residential applications, then Crimped Wire Mesh is the ideal choice. It offers an excellent combination of safety, functionality, and aesthetics. Its easy installation, customizable design, and low maintenance make it suitable for every industry. Nowadays, people prefer crimped wire mesh over traditional mesh due to its high performance and long-lasting reliability.
| Wire Gauge (BWG) | Aperture Size ( mm) | Wire Dia. ( mm) | Weight(Kg/ m2) |
| 8 | 30 | 4.06 | 6.00 |
| 8 | 25 | 4.06 | 7.00 |
| 8 | 20 | 4.06 | 8.00 |
| 8 | 15 | 4.06 | 1.00 |
| 8 | 12 | 4.06 | 13.00 0 |
| 8 | 10 | 4.06 | 15.00 0 |
| 10 | 30 | 3.25 | 4.00 |
| 10 | 25 | 3.25 | 4.70 |
| 10 | 20 | 3.25 | 5.80 |
| 10 | 15 | 3.25 | 7.40 |
| 10 | 10 | 3.25 | 10.00 0 |
| 12 | 30 | 2.64 | 2.70 |
| 12 | 12 | 2.64 | 3.20 |
| 12 | 20 | 2.64 | 3.90 |
| 12 | 15 | 2.64 | 5.00 |
| 12 | 10 | 2.64 | 7.00 |
| 14 | 20 | 2.03 | 2.38 |
| 14 | 15 | 2.03 | 3.10 |
| 14 | 12 | 2.03 | 3.70 |
| 14 | 10 | 2.03 | 4.35 |
| 14 | 8 | 2.03 | 5.22 |
| 14 | 6 | 2.03 | 6.52 |
| 14 | 4 | 2.03 | 8.68 |
| 14 | 3 | 2.03 | 10.40 0 |
| 16 | 15 | 1.63 | 2.03 |
| 16 | 10 | 1.63 | 2.90 |
| 16 | 8 | 1.63 | 3.50 |
| 16 | 6 | 1.63 | 4.40 |
| 16 | 4 | 1.63 | 5.99 |
| 18 | 12 | 1.22 | 1.43 |
| 18 | 10 | 1.22 | 1.68 |
| 18 | 8 | 1.22 | 2.05 |
| 18 | 6 | 1.22 | 2.62 |
| 18 | 4 | 1.22 | 3.62 |
| 18 | 3 | 1.22 | 4.48 |
| 20 | 12 | 0.91 | 0.82 |
| 20 | 10 | 0.91 | 0.96 |
| 20 | 8 | 0.91 | 1.18 |
| 20 | 5 | 0.91 | 1.78 |
| 20 | 4 | 0.91 | 2.15 |
| 20 | 3 | 0.91 | 2.69 |
