Perforated Sheet Metal
| Specification | Details |
|---|---|
| Product Name | MS (Mild Steel) Perforated Sheet |
| Material Type | Mild Steel / Galvanized Iron / Stainless Steel (as per requirement) |
| Thickness Range | 0.5 mm to 5 mm |
| Sheet Size (Standard) | 4 ft × 8 ft / 3 ft × 8 ft / Custom sizes available |
| Hole Type | Round, Square, Slot, Hexagonal, Capsule, Decorative Patterns |
| Hole Diameter | 0.5 mm to 50 mm (customizable) |
| Pitch (Center to Center) | 1 mm to 60 mm (depends on design) |
| Open Area Percentage | 20% – 60% (as per hole design) |
| Surface Finish | Polished / Powder Coated / Hot-Dip Galvanized / Painted |
| Tensile Strength | Approx. 250 – 400 MPa |
| Manufacturing Process | CNC Punching or Laser Perforation |
| Applications | Filtration, Ventilation, Soundproofing, Interior Design, Safety Guards, Machinery Protection |
| Custom Design Options | Available (shape, pattern, thickness, coating) |
| Delivery Location | All over Delhi NCR & PAN India |
| Packaging Type | Wooden Pallet / Roll / Bundle Packing |
| Brand Name | Ls Supreme Mesh |

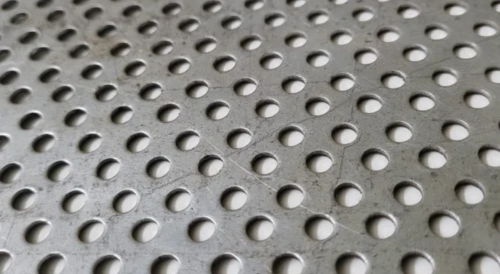

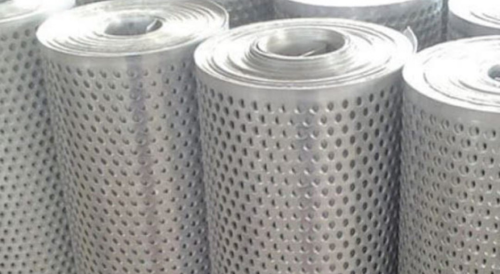

MS perforated sheet is a metal sheet with small holes punched in a regular pattern. It is made of mild steel, which is strong and durable. The holes are created using a punching machine, which makes the sheet lightweight while maintaining airflow and visibility. It is widely used in industries, buildings, and ventilation systems.
Common Size, Thickness and Hole Type
MS perforated sheets are available in a variety of sizes and thicknesses, ranging from 0.5mm to 5mm. Hole patterns are available in round, square, rectangular, and capsule shapes. Sheet size and hole design can be customized to suit project requirements. This flexibility makes this product popular in both industrial and architectural fields.
Industrial Uses of MS Perforated Sheets
MS perforated sheets have wide uses in the industrial sector. They are used for filtration, sieving, machinery guards, ventilation panels and soundproofing. They are in high demand in the construction and manufacturing industries because they withstand heavy loads while also allowing air and light passage. The combination of strength and utility of these sheets makes them multipurpose.
Why MS Perforated Sheets Are Preferred Over Others
MS perforated sheets are more economical and stronger than stainless steel or aluminum. Mild steel material is easy to fabricate, making it simple to create customized hole patterns and designs. They come with a corrosion-resistant coating that ensures a long life. This makes them the perfect choice for architectural, decorative, and industrial uses.
