Test Sieve For Pharmaceutical Industry
The test sieve is a very important tool in the pharmaceutical industry that separates powders and granules according to their particle size. It helps maintain product quality control, consistency and standard compliance (such as GMP & ISO).

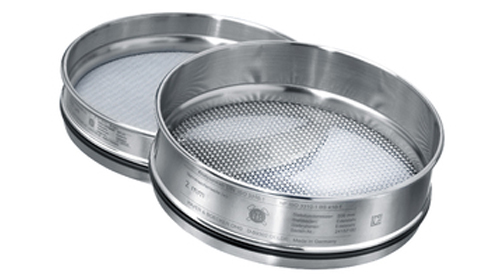

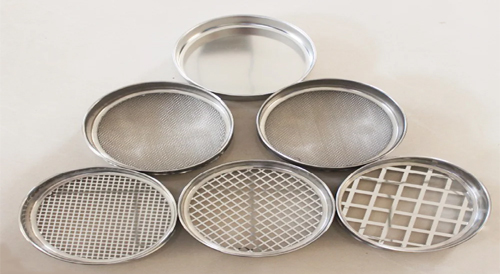

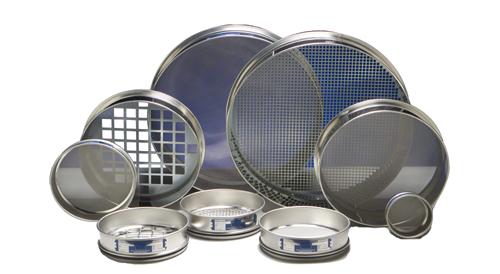

The test sieve is made of high-quality stainless steel that is made to be rust-proof and hygienic. There are different mesh sizes available that are perfect for processes such as tablet manufacturing, powder filtration and material testing. In pharmaceutical manufacturing it is very important to ensure uniform particle size so that the effect of the medicine is reliable.
R&D labs also use test sieves for particle size analysis, whether it is APIs (Active Pharmaceutical Ingredients) or excipients. Accurate sieving improves both product performance and shelf life.
When you purchase test sieves, choose certified and standard quality sieves. Their regular calibration and cleaning is also important to obtain accurate results.
Are you looking for high-quality pharmaceutical test sieves? We provide a wide range of mesh sizes and standard certified sieves that are best for your manufacturing and testing process. Choose our test sieves for quality and precision.
| Sieve Mesh Chart | |||
|---|---|---|---|
| Aperture Size | |||
| B.S.S (410/1969) | A.S.T.M (11-70) | I.S (469/1972) | Microns |
| 4 | 5 | 4.00mm | 4000 |
| 5 | 6 | 3.35mm | 3353 |
| 6 | 7 | 2.80mm | 2812 |
| 7 | 8 | 2.36mm | 2411 |
| 8 | 10 | 2.00mm | 2057 |
| 10 | 12 | 1.70mm | 4000 |
| 12 | 14 | 1.40mm | 1405 |
| 14 | 16 | 1.18mm | 1204 |
| 16 | 18 | 1.00mm | 1204 |
| 18 | 20 | 0.850mm | 850 |
| 22 | 25 | 0.710mm | 710 |
| 25 | 30 | 0.600mm | 600 |
| 30 | 35 | 0.500mm | 500 |
| 36 | 40 | 0.425mm | 420 |
| 44 | 45 | 0.355mm | 355 |
| 52 | 50 | 0.300mm | 300 |
| 60 | 60 | 0.250mm | 250 |
| 72 | 70 | 0.212mm | 210 |
| 85 | 80 | 0.180mm | 180 |
| 100 | 100 | 0.150mm | 150 |
| 120 | 120 | 0.125mm | 120 |
| 150 | 140 | 0.106mm | 105 |
| 170 | 170 | 0.090mm | 90 |
| 200 | 200 | 0.075mm | 75 |
| 240 | 230 | 0.063mm | 63 |
| 300 | 270 | 0.053mm | 53 |
| 350 | 325 | 0.045mm | 45 |
| 400 | 400 | 0.037mm | 37 |
| 500 | 500 | 0.025mm | 25 |
